Product Overview

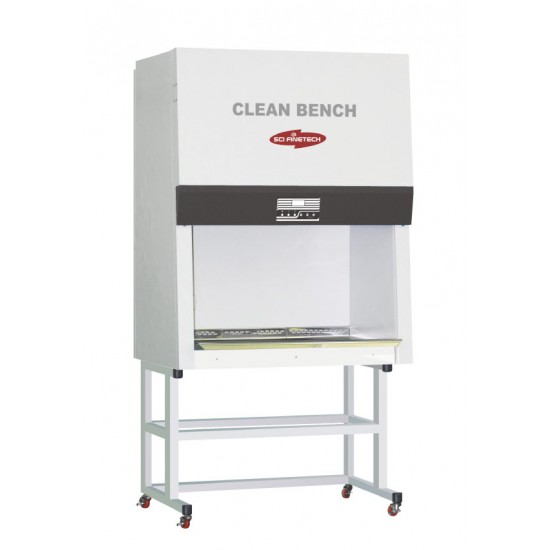

Laminar Flow & Safety Cabinet

The most recent gas-spring has been successfully integrated into the front door's opening and closing system, allowing end users to open and close the door with minimal effort.
It successfully reduces noise more than any other product due to the specific sound absorption materials.
The operating mechanism is really silent.
The sanitary working conditions for the items handled are ensured by the smooth stainless steel work surface and glass pane.

Dimensions :1,100x770x1,400(730)mm

Workzone(in) :960x580x670mm

Supply Voltage :AC 220V,50/60Hz

Product More Specifications

specification_code

Main Filter	ULPA Filter(99.99% efficient at 0.3micron particles
Pre Filter	High-efficiency nylon Filter
Air Velocity	0.3~0.5m/sce(9-phase controllable)
Filter & Efficiency	Recirculation of 70% of purified air through main ULPA filter/Exhaust of the rest 30% to outside via assistant HAPA filter
Illumination	Fluorecent lamp 40Wx2ea or 20Wx2ea
Sterilizing	UV Lamp 20Wx2ea
Controller	LCD microprocessor(Filter change alarm)
Materials	(in): Stainless Steel Plate
	(ex): Steel Plate with powder coating Window: Safety Glass 5mm
Door	Sliding type/Tempered safety glass
Utility	Air cock/Gas cock/Electric outlets(110V/220V)
Supply Voltage	AC 220V, 50/60Hz
