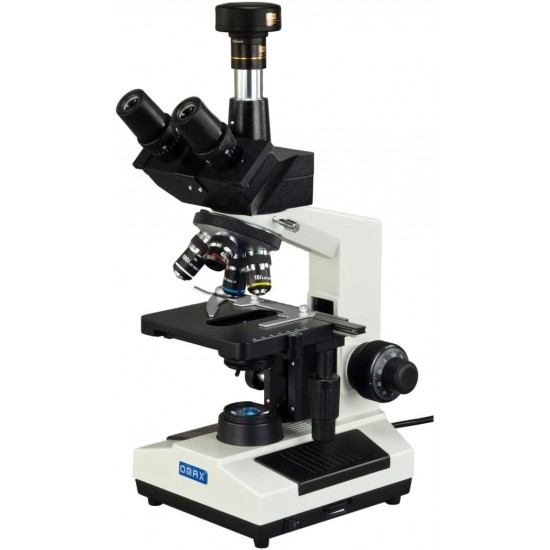

Product Overview 40X-2500X Trinocular Compound LED Microscope with 5MP Digital CameraThe advanced biological trinocular microscope 40X to 2500X provides a LED illumination system and a 5MP USB digital imaging system. The digital compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The 2592x1944 pixels USB digital imaging system that captures still microscope images and live video on computer. Software is compatible with Windows, Mac OS X and Linux operating systems. The Windows software can also be used to make measurements. The LED lamp can be replaced by yourself. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.Features:5MP (2592x1944 pixels) color digital camera with 0.5X reduction lens and 0.01mm calibration slide Large double layer mechanical stage and coaxial coarse and fine focus knobs Replaceable 3W LED transmitted light with adjustable intensity 4 achromatic objectives DIN 4X, 10X, 40X(spring), 100X(spring, oil) 45 degree inclined 360 degree swiveling trinocular viewing head Black palm rest on the base Metal mechanical components
Product More Specifications
specification_code
Microscope TypeCompound
Magnifying TypeMulti-Power
Magnification Power40X-100X-250X-400X-1000X-2500X
OpticsAchromatic
Field ViewNo
Head TypeTrinocular
Objective Power4X, 10X, 40X, 100X
Eyepiece Power10X, 25X
EyepiecesWidefield WF10X/18 and WF25X
ObjectivesAchromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

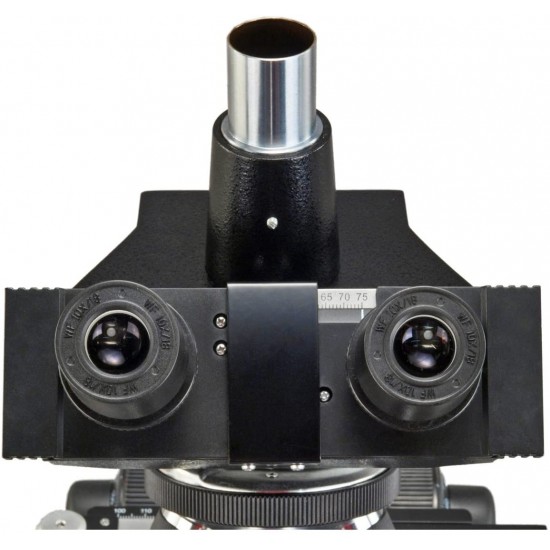

Viewing Head45° Inclined 360° swiveling trinocular
Interpupillary DistanceSliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)
DiopterAdjustable on both eyepiece tubes
NosepieceRevolving quadruple

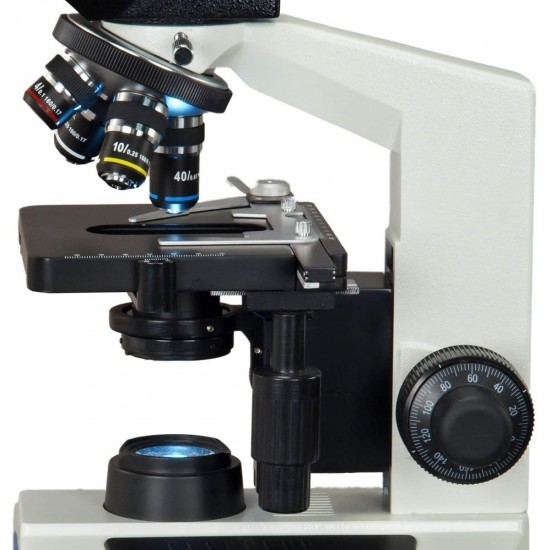

Stage
  • mechanical stain-resistant double layer
  • size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • translation range: 3" x 2" (75mm x 50mm)
Photo tube adjustment range5/8" (15mm)
Focus
  • coaxial coarse and fine focus knobs on both sides
  • rack and pinion adjustment
  • tension control
Condenser and DiaphragmAbbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm
Illumination
  • Transmitted (lower)
  • Replaceable 3W LED light
  • Variable intensity
Digital Camera
  • True color 2592x1944 pixels (5M pixels)
  • 0.5X reduction lens to get larger field of view
  • 0.01 mm calibration slide: 1mm/100 division
  • Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480
  • Software compatible with Windows, Mac OS X and Linux operating systems
  • Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
Made InUSA

Write a review

Note: HTML is not translated!
Bad Good
Captcha
8,292.65 SAR
Ex Tax: 7,211.00 SAR
  • Stock: In Stock
  • Model: OMAX
  • SKU: M837ZL-C50U
